1930 Willys Model 98B 19 Inch Wood Spoked Wheel Rim

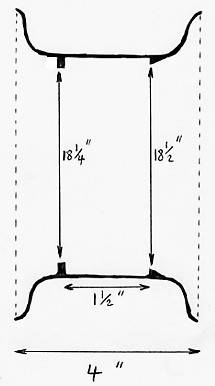

W.O. Part # 376634 - Rim Assembly (19 x 2.75)
Kelsey Hayes Part # 13460

1930 Willys Model 98B 19 Inch Wood Spoked Wheel Rim
1930 Willys Model 98B 19 Inch Wood Spoked Wheel Rim 1930 Willys Model 98B 19 Inch Wood Spoked Wheel Rim

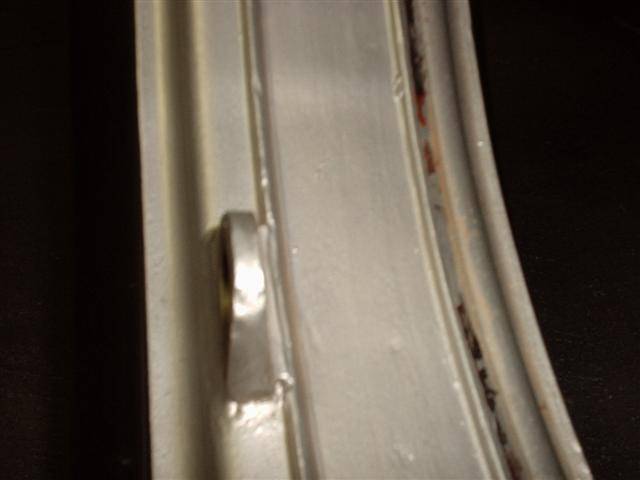

Note: Rim to Wheel clamp on this rim has been welded and smoothed off.   Original pressed on clamps can become loose after many years of service.

1930 Willys Model 98B 19 Inch Wood Spoked Wheel Rim 1930 Willys Model 98B 19 Inch Wood Spoked Wheel Rim

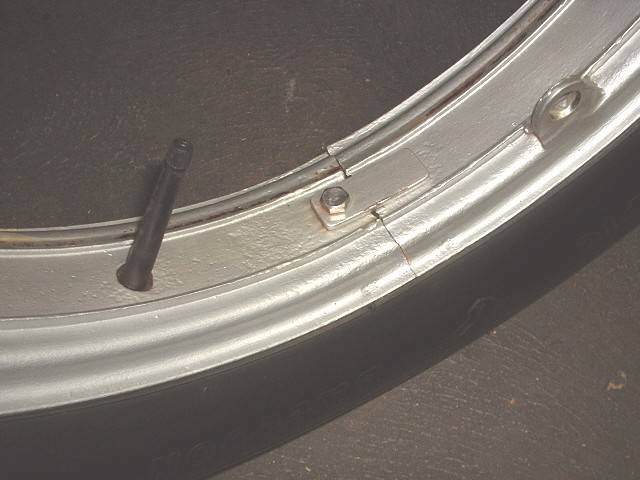

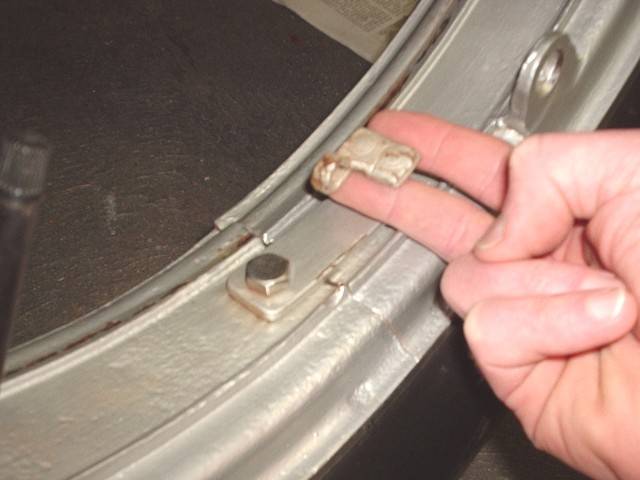

Note: Locking mechanism on this rim has been repaired using a Whippet style tag and stainless steel bolt.   Original locking mechanism shown on right would have used a pin to secure the rim at the join.   This was the last year Willys Overland used this type of rim which required the use of a special rim tool to expand or contract the rim when the tire needed to be removed.
