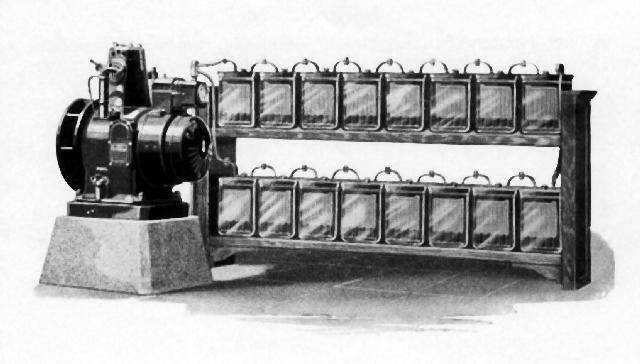

Willys Light Plant with Battery Bank - As used on Farms, Homes, Hotels, Garages, Churches, where ever electric power was required.

Specifications

Engine: Bore-- 2 7/8 Stroke 3 1/2 Speed 1300 RPM HP 3

Aluminium Piston & Cyl Head

Drop forged steel Crankshaft & Connecting Rod

Single Cylinder made of special gray iron with cooling fins

Valves - Willys Knight Sleeve valves

Fuel supply - Suction from 2 gal tank in base

Mixing valve - Simple air adjustment

Fuel Vaporizer - Spray nozzle

Oiling - Pressure and vapor system

Cooling - Air, by suction fan built into flywheel

Ignition: Battery, generator combined. Hottest spark when cranking

Generator: Type - 4 poles, shunt wound, direct-connected to engine

Output: 1250 watts, 32 volt direct current

Battery: Type - 32 volts, 16 cells, thick plates in sealed glass jars

Capacity: 225 ampere hours

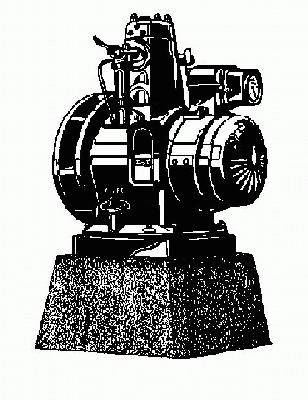

Willys Light Plant Drawing
